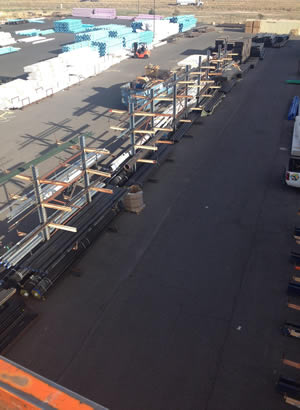

Cantilever Rack for Long Plumbing Pipes

THE CLIENT: Ferguson, Salt Lake City UT 84115


Ferguson needed a shelving unit that could hold and store their long plumbing pipes.


Cantilever racks have arm like bars that stick out like arms that are designed to hold longer than usual items, much like the plumbing pipes.


The Feature: Cantilever racks have arm like supports that extend outwards and are specifically designed to hold long outward items that would otherwise be hard to store on a normal shelving unit.

The Advantage: The unique design of the arms make it a shelving wonder for companies that need to store items that are long and would otherwise not fit on other shelving unit systems.

Return on Investment: It’s a one stop unit—store and organize your product without having to spend hundreds on alternatives to storing product.


Cantilever racks are perfect units for companies that store things such as piping, metal bars, long wood boarding, etc. Jobs such as carpenters, plumbers, industrial settings, and others benefit from this unit because of its ability to hold long in length items. The cantilever rack stands on two plates and has arms that extend outwards as if a person were reaching out in front of them. These bars are placed on both sides of the unit and are strong enough to hold loads of material. A person can also add a piece of wood boarding onto the arms to create a shelf like unit and use it to store additional items.

Cantilever racks have four main parts to its build; columns, arms, bases, and X- Braces. These components make up the form of the cantilever rack. The dimensions on the unit for a 12’ column would have a spec of 5”x 10” structure and its weight is 210.9 with a capacity of 12,000 lbs per side. A column with 16”, spec of 5” x 10” holds a structural weight of 276.7 but its weight capacity is 10,000 lbs on each side. Cantilevers can be built to be either a single base or a double base structure. Dimensions vary with the size of specific built structures. Compared to a 4” Brace kit for a 16’ column would be 50.3 lbs. A 4’ brace kit for a 12” column would weigh 38.6 lbs. X Braces stand at 3 ft. Bases can be bought at 48” Single Bases or at 48” Double Base that are 145.3 lbs.

Cantilever racks are ideal to buy for job environments such as construction, plumbing companies, warehouses, car mechanics, and other environments. Their unique design to hold and store oddly shaped and long objects makes it easier for companies who have these products to have a unit that is designed for this purpose.

NationWide Shelving can help you find the perfect Cantilever rack at no additional cost, give NationWide a call today!


  • Wood, Bars, Tubes, Wood Plans and other long materials
  • Cell Tower Parts and Antennas
  • Solar Energy Products
  • Long Plumbing Pipes
  • Fence Warehouse
  • Storing Vinyl Materials for Fences
  • Disaster Relief Services
  • Furniture
  • Warehouse and Industrial

At NationWide Shelving, we provide the highest quality products and services, and the absolute best value in our industry. Additionally, our sales and installation experts are professionals who have been trained to provide the most accurate information and the highest quality installation services in the industry.
