You can find Pallet Rack for warehouses, and industrial storage applications from NationWide Shelving. We have what you need. Our business is to weigh your goals, and deliver rack to compliment them.
Cantilever Pallet Rack in Utah
Push Back Rack
Heavy Duty Pallet Rack
Pallet Rack in Salt Lake City
Gravity Flow Rack
Carton Flow Rack
Call Now for a FREE Quote or FREE Site Visit! 801-328-8788
It can be difficult to order the correct sizes, dimensions, and weight capacity. Call our experts and let us do it all. This is a free, no obligation service that NationWide Shelving provides with all our products.

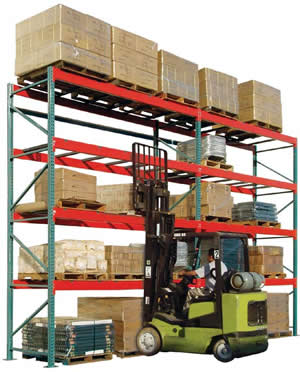

About Pallet Rack:
Nation Wide Shelving's corporate office at 2180 Constitution Blvd, Salt Lake City, Utah 84119 carries most brands and types of Pallet Rack. You will need to consider many points about the items you need to store. Size and weight are key in product selection as well as how you need to access the items once they are stored on the rack. The two options are LIFO and FIFO. LIFO means first in first out and FIFO mean first in last out. We have outlined some information to assist you in making the best selection for pallet rack rack in the "types of pallet rack" section you will find later on this page.
We offer Industrial Storage Products which can save you time and space as well as improve productivity making your day easier. We have what you need! Our business is to weigh your goals, and deliver a system to compliment them. Pallet Rack is available online in our online material handing catalog or you may phone for a representative to assist you with your selection and layout.
Applications:
Warehouse and Manufacturing
Pallets
Furniture, Table Tops Without Legs
Bulk Items or Large Materials
Tubs and Drums
Regular-Duty Uprights (16-Gauge):
3” x 3” Columns
5” x 8” Seismic Base Plate
16-Gauge Steel
16,000 Lbs. Capacity Per Upright
Color: Light Green
Heavy-Duty Uprights (14-Gauge):
3” x 3” Columns
5” x 8” Seismic Base Plate
14-Gauge Steel
23,300 Lbs. Capacity Per Upright
Color: Light Green
Step Load Beams:
Beam length is traditionally measured by the clear span between the uprights, and beam capacities are based on an evenly distributed load. Two beams are necessary in order to create a shelf.
3-Pin Connectors – 3.5”, 4”, and 5” Beams
4-Pin Connectors – 6” Beams
Color: Orange
The New and Improved Upright and Beam Design is Interchangeable with the Following Manufacturers:
Interlake (Original Style)
Space Rack
USP
Lodi Metal-Tech
Steel King
Husky
Uprights for the pallet rack can be shipped already assembled for an additional fee per upright.
16-Gauge Regular-Duty Uprights
Model Number
Height
Depth
Weight
IU36096
IU36120
IU36144
8'
10'
12"
3.0'
3.0'
3.0'
48
57
70
IU42096
IU42120
IU42144
8'
10'
12'
3.5'
3.5'
3.5'
50
58
73
IU48096
IU48120
IU48144
8'
10'
12'
4.0'
4.0'
4.0'
53
61
77
14-Gauge Heavy-Duty Uprights
Model Number
Height
Depth
Weight
IUH36120
IUH36144
IUH36180
IUH36192
10'
12'
15'
16'
3.0'
3.0'
3.0'
3.0'
73
88
110
114
IUH42120
IUH42144
IUH42180
IUH42192
10'
12'
15'
16'
3.5'
3.5'
3.5'
3.5'
75
91
112
120
IUH48120
IUH48144
IUH48180
IUH48192
10'
12'
15'
16'
4.0'
4.0'
4.0'
4.0'
77
95
118
123
Step Load Beams
Model Number
Height
Length
Cap. Per Pair
Weight
215-IB35096
3.5"
8'
3,460
25
215-IB40096
215-IB40108
215-IB40120
4.0"
4.0"
4.0"
8'
9'
10'
4,977
4,228
3,425
27
30
34
215-IB50096
215-IB50108
215-IB50120
215-IB50144
5.0"
5.0"
5.0"
5.0"
8'
9'
10'
12'
7,035
7,103
6,004
4,170
32
36
40
45
215-IB60144
6.0"
12'
6,511
53
Types of Pallet Rack for Salt Lake City 801-328-8788
There are types of Pallet Rack for everything you can imagine and called by more names than we could list here. Common names for Pallet Rack include Cantilever Rack, Gravity Flow Rack, Carton Flow Rack, Push Back Rack, Drive In Pallet Rack Systems, Teardrop, Wire Decking, High Density Rack, Push Back Rack, Starter Units, Adder Units, Mobile Warehouse Shelving, Heavy Duty Warehouse Shelving, Heavy Duty Pallet Shelving, Heavy Duty Pallet Racking, Industrial Duty Welded Storage Rack, Heavy Duty Pallet Rack, Heavy Duty Storage Rack, Heavy Duty Cantilever Racks, Dunnage Racks, Heavy Duty Pallet Rack, Heavy Duty Warehouse Shelving, and Industrial Duty Welded Storage Rack.
If you are storing and retrieving full pallets of material, individual parts and pieces, cartons or boxes, or bins you may consider these options:
LIFO | Static (stationary rack)
Pallets are placed beams. Wood deck or wire can be added. Pallets stay where you put them.
FIFO | Gravity (slight tilting so pallets slide forward)
This solution provides very high density pallet storage. Pallets are loaded from the rear and gently flow, by gravity, forward to a position where the operator retrieves the pallet from the front.
LIFO | Gravity
This solution also provides high
density storage. Pallets go on nesting carts that slide forward by gravity on steel rails. As a pallet is loaded from the front, it pushes the pallet behind it back one position. For unloading the operator removes the front pallet and the pallet that was behind it slides forward by gravity.
FIFO | Static
Drive in rack offers the one of the highest storage of pallets per square foot of space . The system runs on rails that run the depth of the rack system. the same point is used for the operator to place pallets as to retrieve pallets. Forklift drivers are required to drive into the racking system for pallet placement.
LIFO | Static
Similar to Drive-in storage where pallets are stored on rails that run the depth of the rack system, however, there are separate loading and unloading aisles. Drivers are still required to enter the racking system to place pallets.
Additional Accessories for Pallet Rack:
Wire Mesh Decking:
More Effective Sprinklers and Visibility
Composed of 4-Gauge Wire and 13-Gauge Flared Channels
Zinc Electro-galvanized Finish
Wire is Spaced 2.25” x 4.25”
Steel Safety Supports:
Used in Combination with Wood Decking
Provides Extra Support for all Hand Stacking Applications
Commonly Used as Front-to-Back Member to Support Wood or Pallet Decking
Frame Guards:
Composed of Solid Steel
Capable of Withstanding Impacts from Heavy-Duty Construction
Yellow Powder Coated Finish
Bay Dividers:
Designed to Fit Over Step Load Beams
Includes Pre-Punched Holes Intended for Permanent Mounting
Excellent Tool for Organizing Material Vertically
Label Holders:
Designed Extra-Large In Order to be Compatible with Pallet Rack Applications
Comes with Magnetic and Self-Adhesive Label Holders
Label Relocation is Fast and Convenient
Wire Mesh Decking
Model Number
Unit Depth
Deck Width
Capacity
Weight
215-DF3646
215-DF3658
36"
36"
46"
58"
2,500
2,300
19
22
215-DF4246
215-DF4258
42"
42"
46"
58"
2,100
2,200
22
27
215-DF4846
215-DF4858
48"
48"
46"
58"
1,800
2,100
24
30
Steel Safety Supports
Model Number
Upright Depth
Weight
215-USS36
215-USS42
215-USS48
3.0'
3.5'
4.0'
5
6
8
Frame Guards
Model Number
Guard Height
Weight
215-ICP24
24"
11
Bay Dividers
Model Number
Weight
215-ID01
11
Adhesive Labels
Model Number
Size
Qty.
215-L335
215-L346
3" x 5"
4" x 6"
50
50
Magnetic Labels
Model Number
Size
Qty.
215-L335M
215-L346M
3" x 5"
4" x 6"
50
50
Customer Who Bought Pallet Rack:
Manufacturer of Toothpaste to Store Tubs of Glycerin
Pallet Rack Repair Solutions
Worldwide Material Handling Products offers a solution for damage done to a pallet rack.
With their WorldRev Pallet Rack Repair Solutions, you are able to repair your pallet rack, rather than replacing it.
Pre-engineered or custom designed
Covers all types of pallet racks
Most repairs completed within 30 minutes or less
Repairs can be completed without unloading the rack
WorldRev S
Durable steel construction
No welding needed, all bolted
Heavy duty powder coat finish
Custom colors and heights
WorldRev SPro
All WorldRev S features included
V-Nose deflector to protect against damage done by a forklift
Heavy-duty footplate
Eliminates column twisting with two anchors
Flush-mounted deflector for very narrow aisle uses
WorldRev XS
6 inch repair kit with a deflector to help prevent future damage
No welding required
Steel construction
Powder coat finish
Footplate included
WorldRev ST
Heavy duty bracing
Straight Leg modular frame repair kit
Bullnose deflector to help prevent load wheel damage
All bolted design, no welding required
WorldRev SL
All WorldRev ST features included
Slope Leg modular frame repair kit
C-channel structural bracing
Slope Leg design allows for additional aisle clearance
Pallet Rack is designed to provide highly efficient storage of countless parts for, inventory, distribution centers, automotive, assembly and storage needs. Even large retailers have found pallet rack a good looking and inexpensive way to display stock for customer purchase. From a few beams to large installations connected to complex automated storage and delivery systems we can help you determine what you need. Nationwide Shelving can also help you determine if your application and productivity would be better served with either more space efficient solutions or faster picking solutions such as drive in rack, push back rack and gravity flow racks. Our highly trained designers will insure you get the right rack and the most possible storage. From simple to complex solutions for all forms of shelving, including sophisticated multi-level, automated and modular applications we are America's Shelving Superstore for a reason!
Unparalleled Experience 801-328-8788
With decades of hands on design, installation, and manufacturing experience, we have the expertise to help you from start to finish. We have installed thousands of Industrial Shelving systems all over the nation. We understand the storage challenges you face, and have designers ready to create and present innovative solutions to you.
Beam capacities vary greatly from light weight capacities to extremely heavy duty. Common requirements are 3,500 to 7,000 pounds.
What size columns do uprights have?
3" x 3", 16 gauge and 14 gauge
Are there seismic foot plates?
Yes, 5 " x 8"
Is wire mesh decking available?
Yes, in a wide variety of sizes to match beam widths and depths.
What is the weight capacity of the uprights?
Uprights range from 16,000 to 24,000 pounds.
What colors are available?
A variety of colors are available depending on manufacturer.
What style of upright holes are available?
Tear Drop, What are typical depths for pallet?
Rack depths of 36" 42" 48" are typical but others are available, please call. Are frames bolted or welded?
They can be either. In the US welded is more common while worldwide bolted are more common.
What accessories are available for pallet rack?
Post frame guards, row spacers, safety supports, label holders, bay dividers, and many more.
Pallet Rack Applications in Salt Lake City 801-328-8788
With decades of hands on design, installation, and manufacturing experience, no other shelving and racking company has the expertise to match that of NationWide Shelving. We have installed thousands of shelving systems all over the nation. We understand the storage challenges you face, and have designers ready to create innovative solutions.
Manufacturers of Pallet Rack Offered in Salt Lake City
How Can Hannibal Structural Advantages Help Your Customer ?
Powder Coat Paint
Galvanized Option
Adjustable on 1" centers
Hybrid Roll Form Beams with Structural Uprights for Greater Cost Savings
Heavy Duty Bolted Connections
3" or 4" Columns
3", 4" , 5" or 6" Beams
Hybrid Structural Exterior Frames combined with Roll Form Interior Frames provide cost savings
Design Team to Help with Layouts & Engineering
Quality and Value
NationWide Shelving and Automated Storage is a leader in providing steel storage products, and that allows us to deliver a product with quality and value relationship to meet your needs.
At NationWide Shelving, we provide the highest quality products and services, and the absolute best value in our industry. Additionally, our sales and installation experts are professionals who have been trained to provide the most accurate information and the highest quality installation services in the industry.
